DOSING VALVE DV25
DP-D-010-000002- Dosing of low to high viscosity media
- Dosing range 0.02–2.5 cm³
- High reliability
- Low maintenance
- Long service life
Application
The DV25 is suitable for volumetric dosing of low to high viscosity media in the dosing range of 0.02–2.5 cm³ and can be used for manual as well as automatic dosing processes.
Description
The valve consists of two structurally separate parts. This design prevents uncontrolled leakage of the medium into the pneumatic cylinder and thus prevents interference with the valve needle.
The exact dosing quantity is set via the adjusting nuts with readable quantity scale, which enables repeatable, exact and precise dosing.
The metering cycle can be controlled pneumatically by means of a 5/2 directional control valve.
Advantages
The DV25 is characterized by high reliability and low maintenance.
The modular seal package ensures fast and service-friendly maintenance in just a few steps. The seals meet the latest technological standards and ensure a long service life for the valve.
Technical Data
Dimensions
Weight
1500 g
Width x height x depth
67 x 50 x 330 mm
Compressed air supply
Pneumatic operating pressure
3.5–10 bar
Compressed air quality
dried, filtered, oil-free
Pneumatic connections
G 1/8" female thread
Environmental conditions
Temperature
10–50 °C
Humidity
50– max. 70 %
Installation conditions
flat industrial floor
Sound level
< 70 dB(A)
Material conditions
Material input pressure
3–30 bar
Material output pressure at 5 bar operating pressure
approx. 40 bar
Dosing speed
max. 250 ms/dosing cycle
Dosing quantity
0.02–2.5 cm³
Connection input medium
M16x1.5 external thread
Connection output medium
G 1/4" external thread dosing valve.
With standard adapter L600172:
G 1/4" external thread > G 1/8" female thread
Permissible Medium
NLGI class 0–3 (greases, oils, pastes, silicones)

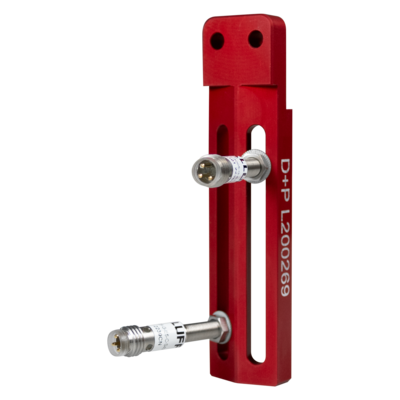

ACCESSORIES
Further accessories & spare parts on request! Also searched as: DV 25
