MINI DOSING VALVE
DP-K-002-000040 // Dosing valve C-419.01.00DP-K-002-000051 // Dosing valve C-450.20.00
DP-K-002-000060 // Dosing valve C-450.20.03
- Dot applications of very small quantities
- Short cycle times
- Exactly reproducible dosing quantity
- Longer service life due to low-maintenance seals
Application
The mini dosing valve enables spot application of low to high viscosity media in very small quantities.
Description
The valve consists of two structurally separate parts. This design prevents uncontrolled leakage of the medium into the pneumatic cylinder and thus prevents interference with the valve needle.
The shot volume can be set within a predefined range using the stop screw. The dispensing cycle is controlled pneumatically or electrically by means of a solenoid valve.

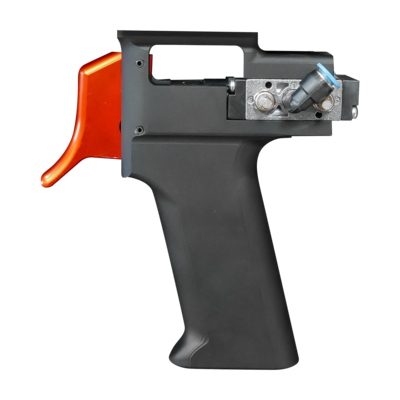

Manual application by hand is just as possible as integration into a fully automated process.
Included is a cannula that is customized.
Advantages
The mini dosing valve is characterized by high reproducibility, short cycle times and low maintenance requirements.
Technical Data
Dosing quantity
0.05–0.200 cm3, depending on version
Min. material pressure
3 bar
Max. material pressure
20–75 bar, depending on version
Material connection
depending on version
Length x width x height
depending on version
Weight
750–1480 g, depending on version
A comparison table with more detailed information can be found in the data sheet.
Show more...Versions
Dosing valve C-419.01.00
Dosing quantity 0.05–1.0 cm3
Dosing valve C-450.20.00
Dosing quantity 0.003–0.200 cm3
Dosing valve C-450.20.03
Dosing quantity 0.003–0.200 cm3
ACCESSORIES
Further accessories & spare parts on request! Also searched as:
